SNMP TRAP OID

Send SNMP Trap

When the relay input is triggered, send an SNMP trap to notify network management systems of the input event.

The following trap Object Identifiers(OID) are available:

• 3: Relay input active

• 4: Relay tamper active

• 5: Relay input idle

The OIDs will be prefixed with 6 for SNMPv1.

Note

You must have enabled and configured Simple Network Management Protocol in Advanced Settings → Admin first.

To send an SNMP Trap:

1. Go to Additional Features → Input/Output.

2. Select your Relay Input Mode.

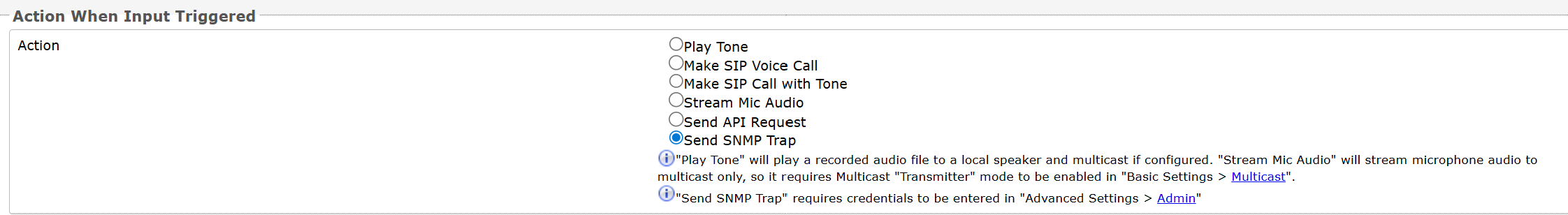

3. In the Action When Input Triggered section, set Action to Send SNMP Trap.

4. To send a second SNMP trap when the relay input is released, enable Send SNMP Trap on Release.

   This sends the trap OID value 65 (Relay input idle).

   Note

   This option is available only to Normally Open, Normally Closed, Normally Open with Supervision, and Normally Closed with Supervision.

5. Select Save.
