When amplifiers are connected to the 8305 or 8301 AUX OUT port, some may require DTMF to select broadcast zones.
DTMF tones are supported in the following events:
While playing pre-recorded ringtones, or emergency alerts
During paging
You can configure the same global DTMF tone(s) for all events or set tones per event.
Setting Global DTMF Tones for All Events

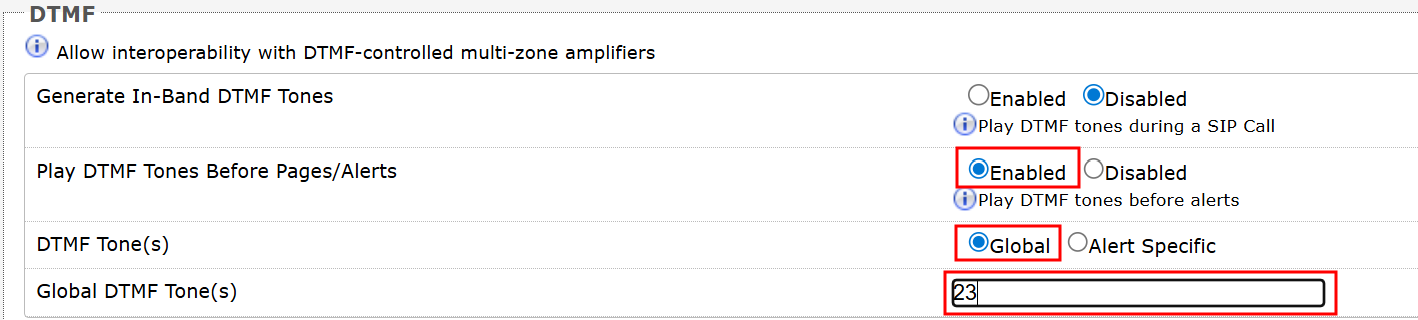

You can set the same global DTMF tone(s) for all paging, ringing, and Emergency Alerts so that the same broadcast zones are used for all events.
.png)
To set a global DTMF tone for all events:
Log in to your 8301 or 8305’s web interface.
Go to Advanced Settings → Advanced Audio.
To play DTMF tones before paging, ringing, or emergency alerts, set Play DTMF Tones Before Pages/Alerts to Enabled.
For DTMF Tone(s), select Global.
Enter Global DTMF Tone(s). To specify multiple DTMF tones, enter them as a continuous sequence, exactly the same way you would press keys on a telephone keypad.
You can also use commas to add a pause between tones.
For example:
Desired Tones
Enter
Tone 1
1Zone 3, then confirm
3#Zones 2 and 4
24or2,4Special command
*1#Note
The applicable DTMF tones are defined by the connected amplifier. The above examples are provided for illustration purposes only.
Select Save.
Setting Specific DTMF Tones for Different Events

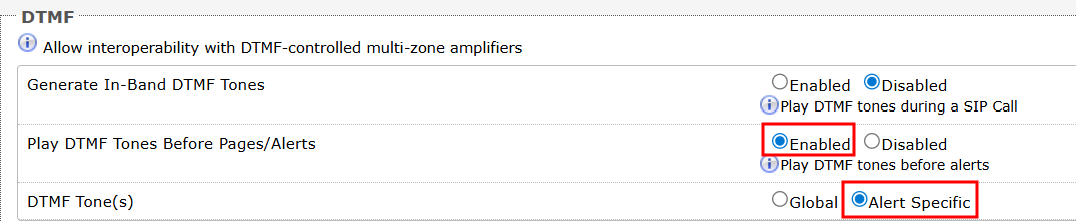

You can configure different DTMF tones for all ringing, Emergency Alerts, and paging so that different broadcast zones are used for each event.
.png)
You must configure a DTMF tone for the Ring Extension, Emergency Alert, or Page Extension.

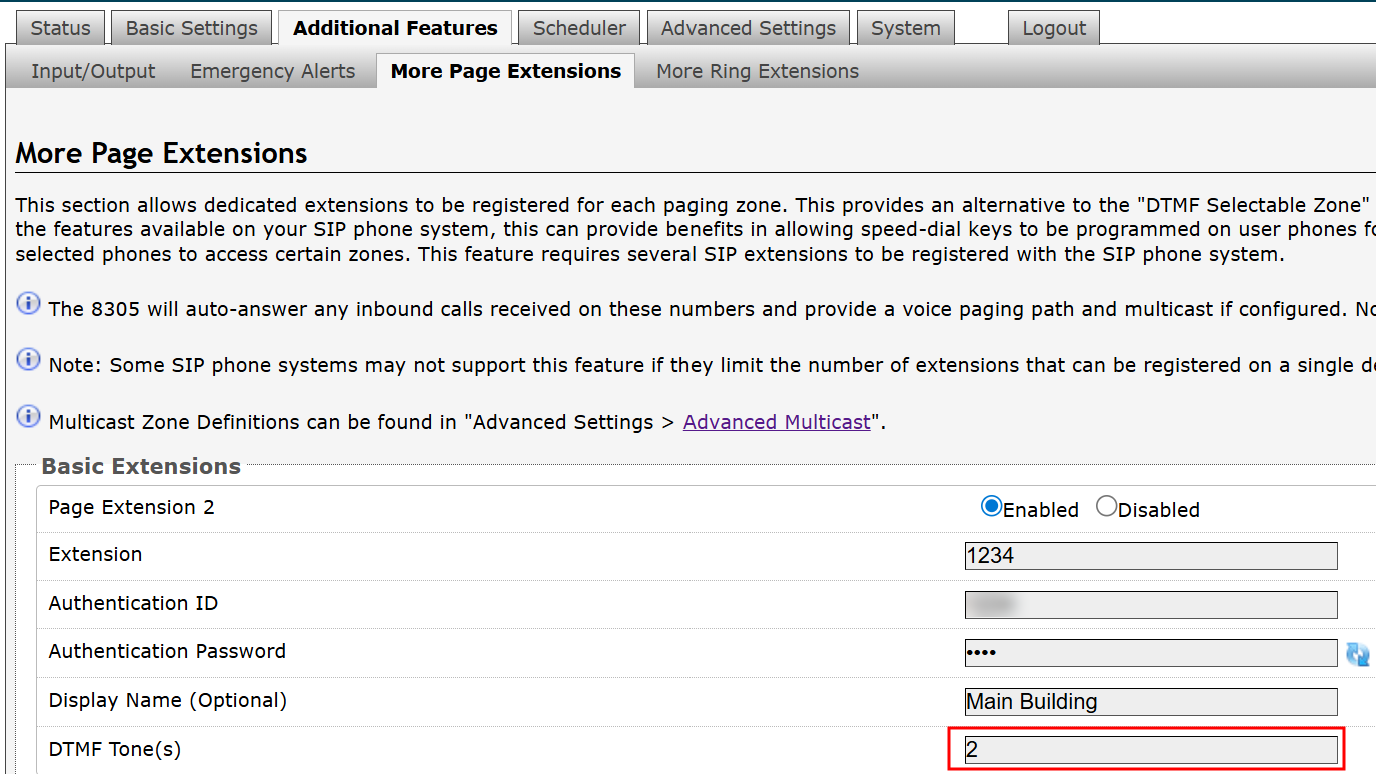

The following example shows how to set the DTMF tone for a page extension:
.png)
To set alert-specific DTMF tones:
Log in to your 8301 or 8305’s web interface.
Go to Advanced Settings → Advanced Audio.
To play DTMF tones before paging, ringing, or emergency alerts, set Play DTMF Tones Before Pages/Alerts to Enabled.
Select DTMF Tone(s) to Alert Specific.
Select Save.
Configure your Emergency Alerts, Page Extension, or SIP Extension:
Go to Additional Features → Emergency Alerts. Select a desired emergency Announcement and configure the details.
Go to Additional Features → More Page Extensions. Select a desired page extension and configure the details.
Go to Basic Settings → SIP, or Additional Features → More Ring Extensions. Select a desired SIP extension and configure the details.
Enter DTMF Tone(s). To specify multiple DTMF tones, enter them as a continuous sequence, exactly the same way you would press keys on a telephone keypad.
You can also use commas to add a pause between tones.
For example:
Desired Tones
Enter
Tone 1
1Zone 3, then confirm
3#Zones 2 and 4
24or2,4Special command
*1#Note
The applicable DTMF tones are defined by the connected amplifier. The above examples are provided for illustration purposes only.
Select Save.
