Radio Streaming
You can stream and multicast online radio or loop a preconfigured audio file to multiple devices simultaneously.
This allows centralized audio distribution without requiring individual playback control on each device.
Note
For 8301, make sure Additional Features → Input/Output → Audio Always On is set as Disabled before using Radio Streaming.
Otherwise, you cannot enable Radio Streaming.
Supported Radio or Audio Format
Make sure your audio meets the following requirements:
Radio streams: The stream must be an HTTP or HTTPS audio stream encoded in MP3, AAC, AAC+, Ogg Vorbis, Opus, or FLAC. HLS (.m3u8) audio streams are also supported.
Offline audio files: Each file must be in MP3 format, smaller than 200 MB or shorter than 3 hours at 128 kbps.
Otherwise, the file is not available in the Offline Music File drop-down list for Radio Streaming.
Uploading Offline Audio Files
To play offline audio files, you must upload them to the radio folder of the File Manager before you can use them in radio streaming.
Note
The file must be in MP3 format, smaller than 200 MB or shorter than 3 hours at 128 kbps.
Otherwise, the file is not available in the Offline Music File drop-down list for Radio Streaming.
To upload offline audio files:
Go to System → File Manager.
Select the radio folder.
Do one of the following:
Drag and drop audio files from your local computer into this folder.
Select Upload and follow the on-screen instructions to upload files from your computer or mobile device.
When prompted, select Reboot.
After the reboot completes, the uploaded audio files are available in the Offline Music File drop-down list for Radio Streaming.

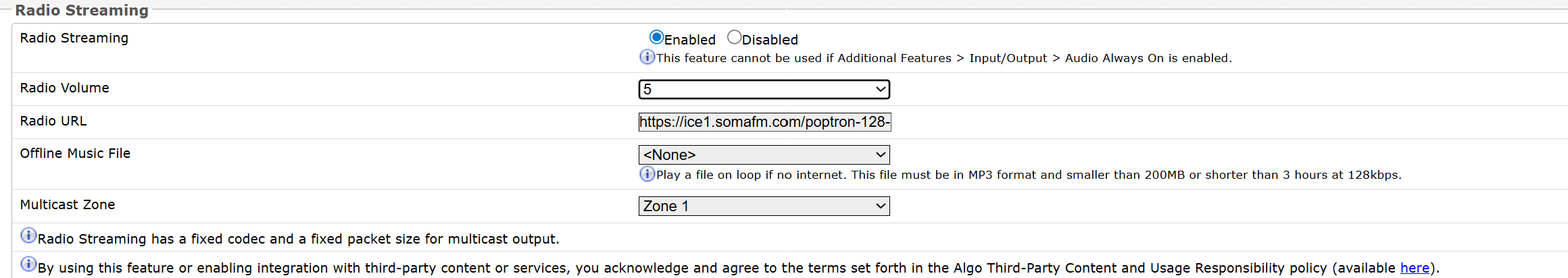

Configuring Radio Streaming
You can stream either online radio or a local audio file. If your device is a Multicast Transmitter, you can also configure the target multicast zone to stream the audio to multiple devices simultaneously.
.png)
Note
When both the Offline Music File and Radio URL are specified, the Radio URL takes precedence if an Internet connection is available.
To configure radio streaming:
Go to Advanced Settings → Advanced Audio.
Go to the Radio Streaming section and configure the following:
Radio Streaming: Set as Enabled.
Radio Volume: Set the audio output volume for the 8301/8305 AUX OUT port.
This volume doesn’t impact the multicast volume of the receiving devices.
Radio URL: Enter the stream URL.
Offline Music File: Select an audio file to stream.
Multicast Zone: Select a zone to multicast the audio to.
Your device must be configured as a multicast transmitter first. The multicast output is RTP-only, using the L16 codec with a fixed packet size.
Select Save.
The radio stream starts.
Stopping Radio Streaming
You can disable Radio Streaming to stop an ongoing stream.
This doesn’t change your Radio Stream settings.
To stop radio streaming:
Go to Advanced Settings → Advanced Audio.
Go to the Radio Streaming section and set Radio Streaming as Disabled.
Select Save.
Radio Streaming FAQs
FAQ
Why can’t I enable Radio Streaming for my 8301?
For 8301, make sure Additional Features → Input/Output → Always Active is set to Disabled before using Radio Streaming.
Why can’t I find my audio file in the Offline Music File drop-down list? It’s in the File Manager → radio folder.
The audio files must meet the following requirements to be available in the Offline Music File drop-down list for Radio Streaming:
MP3 format
Smaller than 200 MB or shorter than 3 hours at 128 kbps
